PowerLags®
ExteriorPowerLags®

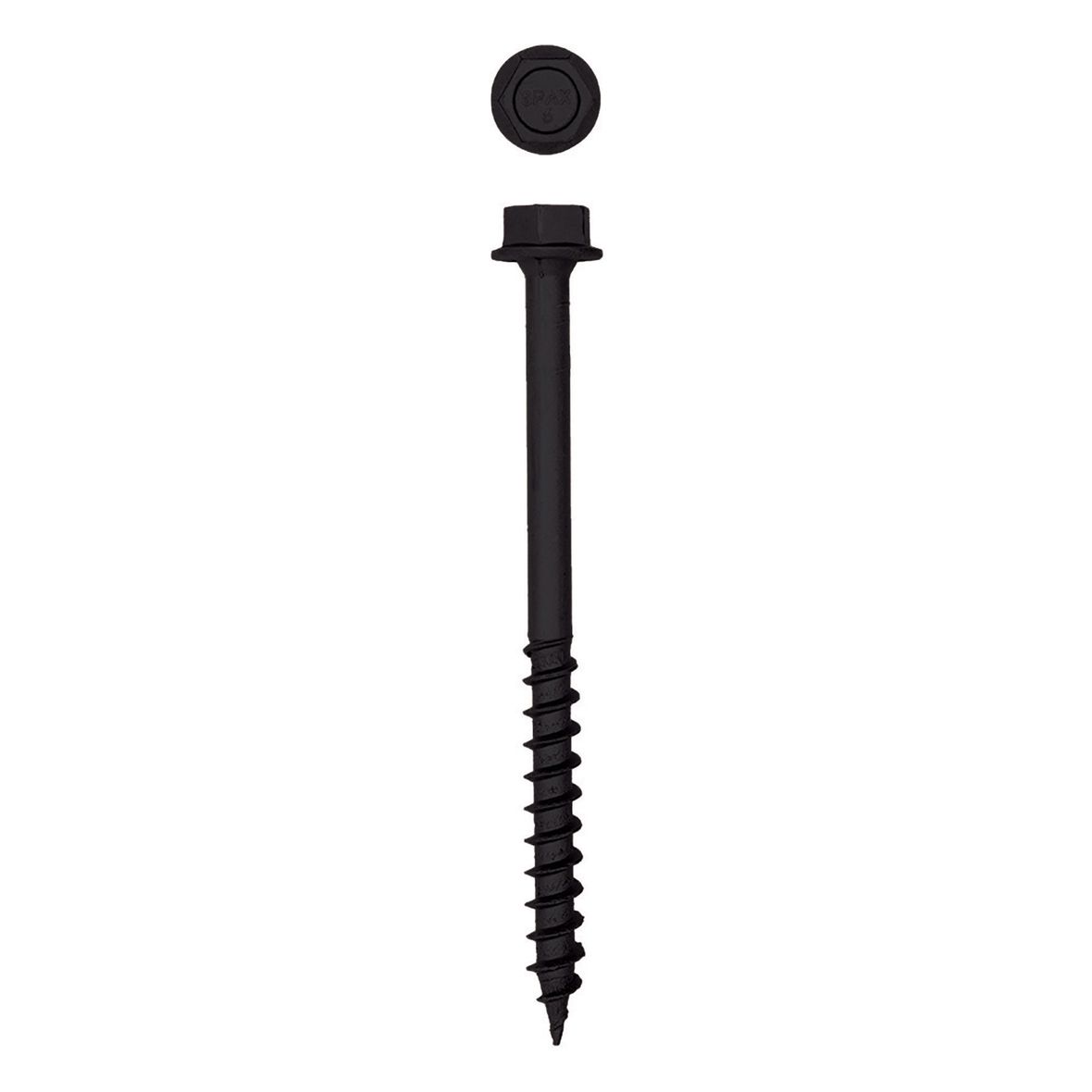

1/2" HEX HEAD HCR® POWERLAGS® XS
SPAX® Hex Washer Head PowerLags® with HCR® coating are intended for wood to wood connections in exterior structural applications. These fasteners are designed with a hex head conventional driver system along with a built in washer for applications requiring superior pull-down force. Often used in high torque applications.
Available in: 1/2" diameter
Purchase Options:
Material & Coating
Cold-rolled carbon steel wire heat treated for strength and durability and plated with an HCR® (High Corrosion Resistance) double barrier coating. HCR® is tested and recognized for use in ground contact pressure treated lumber for exterior, freshwater general construction applications. (e.g., AWPA UC1-UC4A, UCFA)

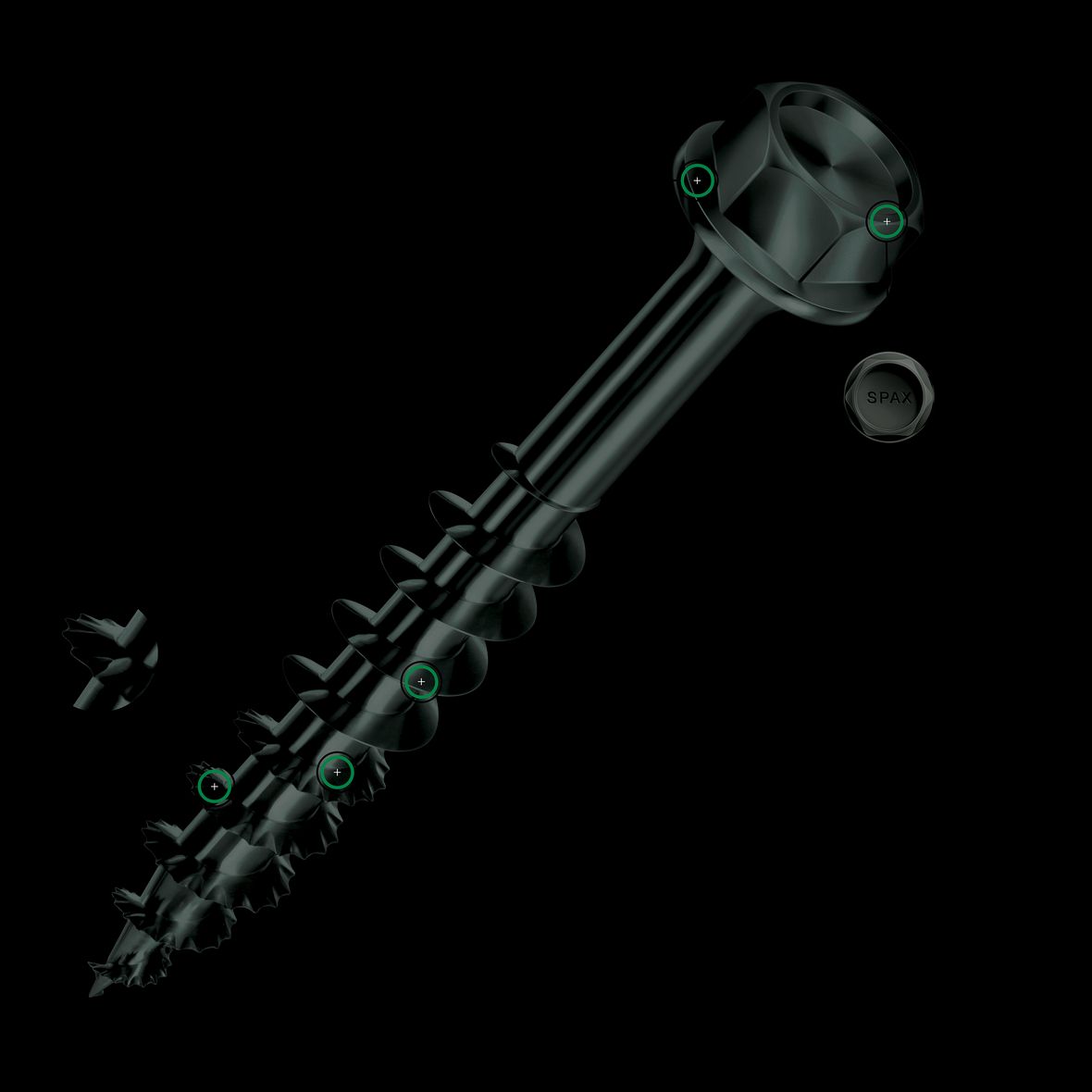

Features
PowerLags® are the ideal replacement for conventional lags!
Note: Lead holes of 13/64" (0.203") diameter is required for 1/2" PowerLags®
- Heat treated for strength and durability
- IRC / IBC Code Compliant DrJ TER No. 1912-07 Structural Fastener Properties
- Serrated threads require up to 40% less driving torque to increase installation speed while helping prevent cracking in logs
- Built-on washer head designs eliminate the need and extra cost of a separate washer
- Fastener length stamp on the head provides convenient identification without measuring and aids on-site inspections
- Sold in job-friendly package quantities, including bulk pails

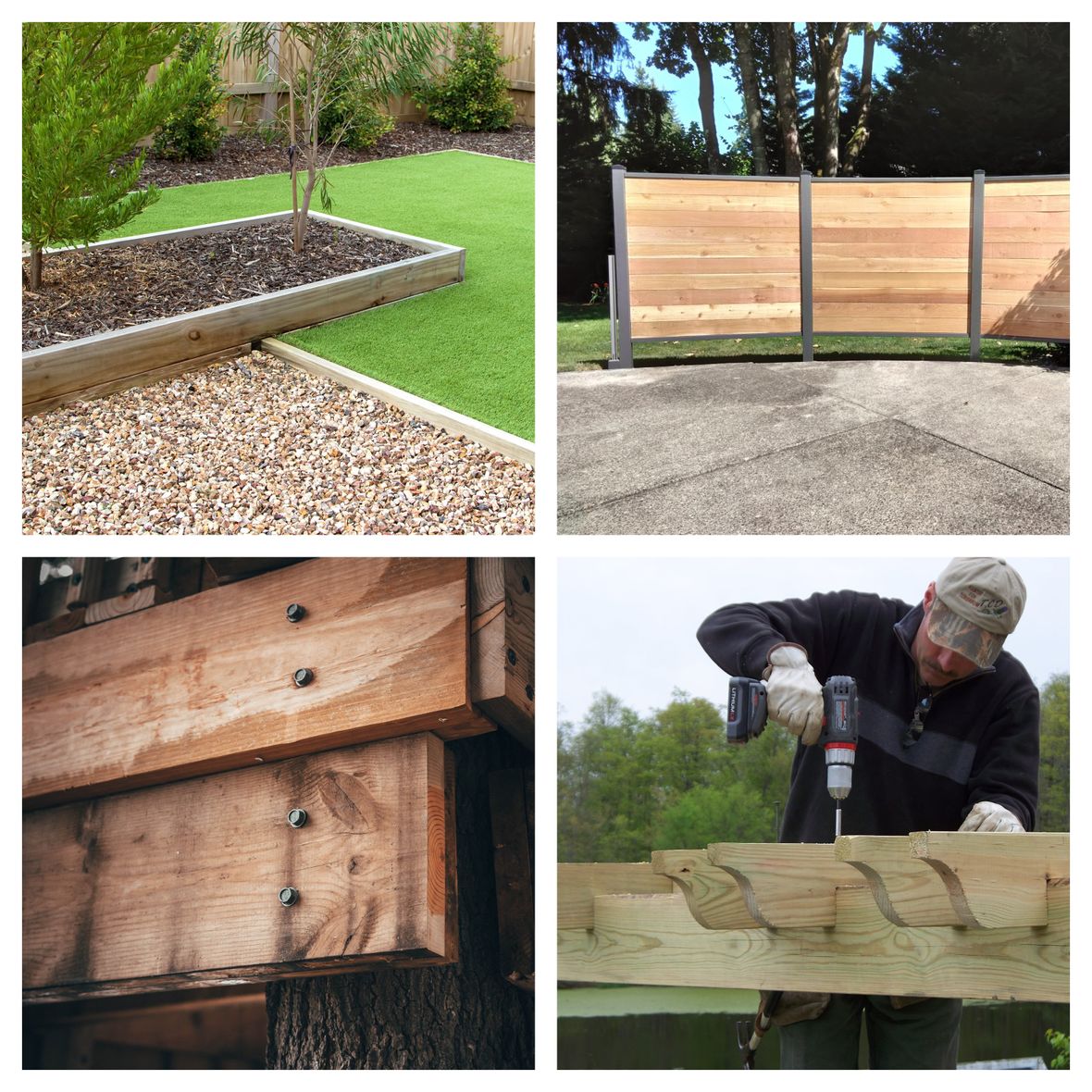

Typical Applications
- Deck ledger to band joist attachment
- Exterior treated lumber pergolas and gazebos
- Landscaping timber
- Outdoor furniture
- Exterior fencing
- Decorative applications
Design Values & Loads
Southern Pine(SG=.55)
| Diameter | 1/2" |
|---|---|
| Withdrawal W (lbs./inch) | 292 |
| Head Pull-Through WH (lbs.) | 720 |
Douglas Fir(SG=.50)
| Diameter | 1/2" |
|---|---|
| Withdrawal W (lbs./inch) | 280 |
| Head Pull-Through WH (lbs.) | 660 |
Hem Fir & Spruce-Pine-Fir(SG=.42)
| Diameter | 1/2" |
|---|---|
| Withdrawal W (lbs./inch) | 210 |
| Head Pull-Through WH (lbs.) | 580 |
1 Based upon ASD design loads. Values shall be multiplied by the applicable adjustment values provided in the 2024 National Design Specification (NDS) for Wood Construction.
2 Withdrawal values are pounds per inch of thread including the tip but excluding the length of the upper 4CUT™. Minimum penetration into the main member is 1-1/2" for the 1/4" and 5/16" diameters, 2" for the 3/8" diameter, and 3" for the 1/2" diameter.
3 Head pull-through values are based upon a 1-1/2" side member.
4 Lateral shear capacity is based upon a 1-1/2" side member and at least 1-1/2" penetration into the main member for the 1/4" and 5/16" diameters or 3-1/2" for the 3/8" or 1/2" diameters.
5 Tabulated values are based upon the specific gravities in the NDS. For specific gravities not listed, use the next lower value. When the connection has two different species, use the lower specific gravity.
