T-STAR PLUS FLAT HEAD HCR-X™
SPAX® T-STARplus® Head fasteners with HCR-X™ coating are designed for use in multiple material connections often found outside residential domains. These construction fasteners are designed to countersink in treated lumber for a clean-flush finish and provides a quick and easy installation. In addition, they provide long-lasting, "contractor proven" secure connections.
Available in: #10, #14, #8, and #9 diameters
Purchase Options:
Material & Coating
Cold-rolled carbon steel wire, heat treated for strength and durability and plated with a HCR-X™ finish to prevent red rust. HCR-X™ is tested and recognized for use in ground contact pressure treated lumber for exterior, freshwater general construction applications (e.g., AWPA UC1-UC4A, UCFA). SPAX recommends stainless steel for cedar and redwood attachment applications.

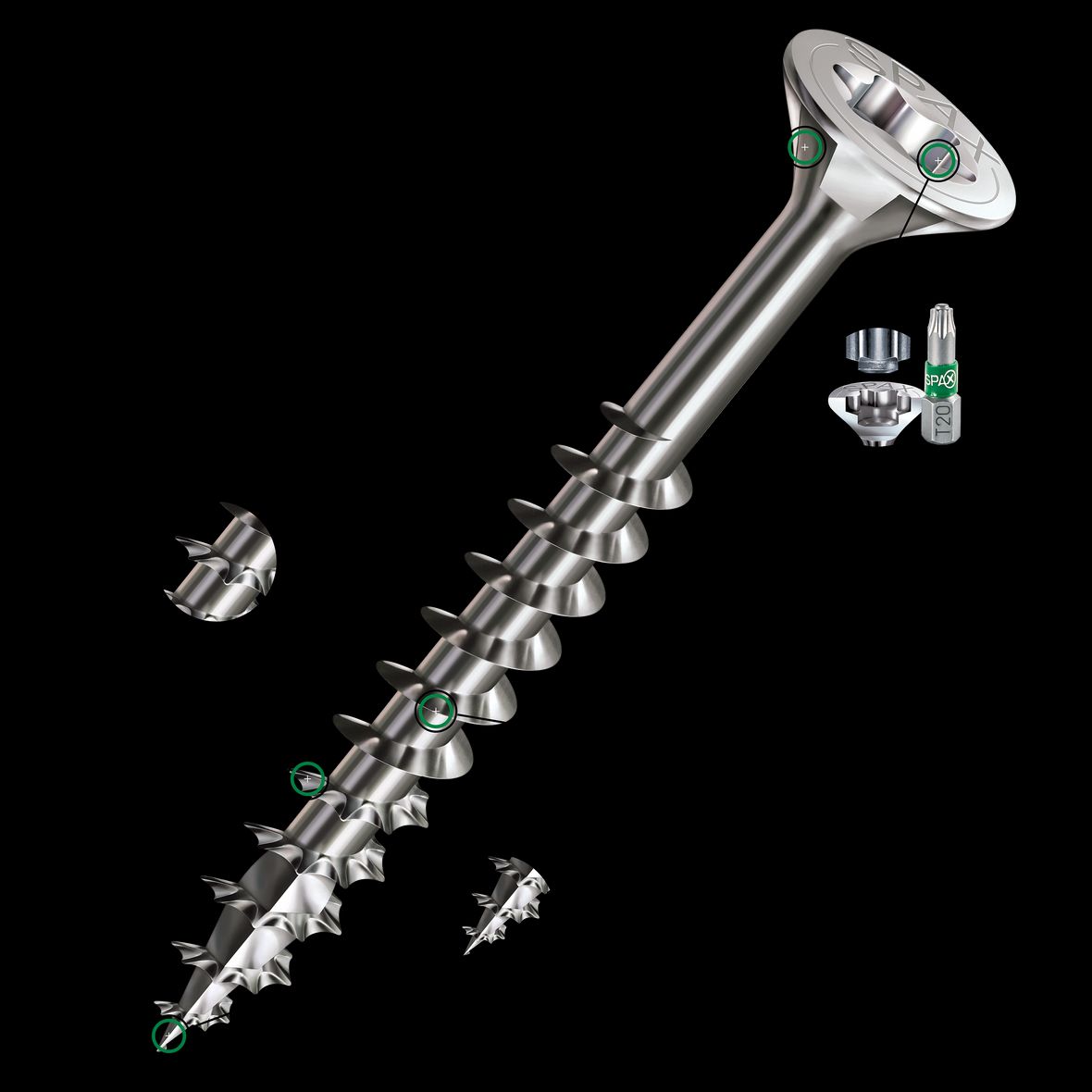

Features
The T-STARplus® Head screw features ribs on the underside of the head that facilitate a clean, flush, or countersunk finish in wood and acts as a brake against metal hardware to prevent stripping out.
- IRC / IBC Code Compliant DrJ TER No. 2010-02 Construction Screw Properties
- Heat treated for strength and durability
- Serrated threads reduce driving torque to prolong power tool battery life
- Unique 4CUT™ Point prevents splitting and requires no pre-drilling in wood
- Superior bit fit to eliminate camming out
Whether you’re working with wood, concrete, masonry, sheet metal, or plastic, use SPAX Multi-Material Construction Screws on multiple materials.
SPAX ENGINEERED FASTENERS ARE THE MOST ADVANCED FASTENER PRODUCT ON THE MARKET
Typical Applications
- 2-by Framing Connections - Treated Lumber
- Deck Board Finishing Installation
- Deck Railing 2x2 Baluster
- Stair Treads - Treated Lumber Deck
- Exterior Fencing
- Shed Construction
- Outdoor Furniture
Downloads
Product Brochures
Product Submittals
Reference Lateral Shear Values
CAD & Dimensional Drawings
Download All#8 Flat Head T-STAR Plus and UNIDRIVE
#10 Flat Head T-STAR Plus and UNIDRIVE
Design Values & Loads
Southern Pine(SG=.55)
| Diameter | #8 | #9 | #10 | #14 (Dry) | #14 (Wet) |
|---|---|---|---|---|---|
| Withdrawal W (lbs./inch) | 175 | 190 | 190 | 205 | 140 |
| Head Pull-Through WH (lbs.) | 157 | 303 | 315 | 240 | 155 |
Douglas Fir(SG=.50)
| Diameter | #8 | #9 | #10 |
|---|---|---|---|
| Withdrawal W (lbs./inch) | 133 | 146 | 176 |
| Head Pull-Through WH (lbs.) | 157 | 211 | 238 |
Hem Fir & Spruce-Pine-Fir(SG=.42)
| Diameter | #8 | #9 | #10 | #14 (Dry) | #14 (Wet) |
|---|---|---|---|---|---|
| Withdrawal W (lbs./inch) | 127 | 132 | 144 | 130 | 95 |
| Head Pull-Through WH (lbs.) | 123 | 177 | 177 | 190 | 135 |
Laminated Veneer Lumber(SG=.50)
| Diameter | #14 (Dry) | #14 (Wet) |
|---|---|---|
| Withdrawal W (lbs./inch) | 180 | - |
| Head Pull-Through WH (lbs.) | 350 | - |
Plywood 15/32"(SG=.39)
| Diameter | #8 | #9 | #10 |
|---|---|---|---|
| Withdrawal W (lbs./inch) | 51 | 51 | 90 |
| Head Pull-Through WH (lbs.) | 120 | 125 | 151 |
Plywood 19/32"(SG=.39)
| Diameter | #8 | #9 | #10 |
|---|---|---|---|
| Withdrawal W (lbs./inch) | 83 | 92 | 92 |
| Head Pull-Through WH (lbs.) | 120 | 145 | 177 |
Plywood 23/32"(SG=.50)
| Diameter | #8 | #9 | #10 |
|---|---|---|---|
| Withdrawal W (lbs./inch) | 162 | 186 | 186 |
| Head Pull-Through WH (lbs.) | 212 | 258 | 293 |
OSB 15/32"(SG=.50)
| Diameter | #8 | #9 | #10 |
|---|---|---|---|
| Withdrawal W (lbs./inch) | 36 | 54 | 54 |
| Head Pull-Through WH (lbs.) | 68 | 68 | 78 |
OSB 19/32"(SG=.50)
| Diameter | #8 | #9 | #10 |
|---|---|---|---|
| Withdrawal W (lbs./inch) | 48 | 54 | 54 |
| Head Pull-Through WH (lbs.) | 78 | 78 | 78 |
OSB 23/32"(SG=.50)
| Diameter | #8 | #9 | #10 |
|---|---|---|---|
| Withdrawal W (lbs./inch) | 52 | 66 | 66 |
| Head Pull-Through WH (lbs.) | 110 | 110 | 110 |
ALLOWABLE WITHDRAWAL (W) AND HEAD PULL-THROUGH (WH)
- Tabulated withdrawal and head pull-through design values (W) and (WH) are shown at a CD = 1.0. Tabulated withdrawal and head pull-through values shall be adjusted by all applicable adjustment factors per NDS Table 11.3.1.
- Full withdrawal strength is calculated by multiplying the length of thread embedded in the main member by the tabulated reference withdrawal values.
- Head pull-through values for #8 diameter and larger in Southern Pine, Douglas-Fir, Hem-Fir and Spruce-Pine-Fir are minimum 1.5" side member thickness.
- For wood species with an assigned specific gravity between 0.42 and 0.50, use the tabulated values for specific gravity of 0.42. For wood species with an assigned specific gravity between 0.50 and 0.55, use the tabulated values for specific gravity of 0.50. For wood species with an assigned specific gravity greater than or equal to 0.55, use the tabulated values for specific gravity of 0.55.
